In order to facilitate users to upgrade the firmware version used by BUNKER PRO 2and bring customers a more complete experience, BUNKER PRO 2 provides a firmware upgrade hardware interface and corresponding client software.
Upgrade Preparation
Agilex CAN debugging module X 1
Micro USB cable X 1
BUNKER PRO 2 chassis X 1
A computer (WINDOWS OS (Operating System)) X 1
Upgrade Process
- Plug in the USBTOCAN module on the computer, and then open the AgxCandoUpgradeToolV1.3_boxed.exe software (the sequence cannot be wrong, first open the software and then plug in the module, the device will not be recognized).

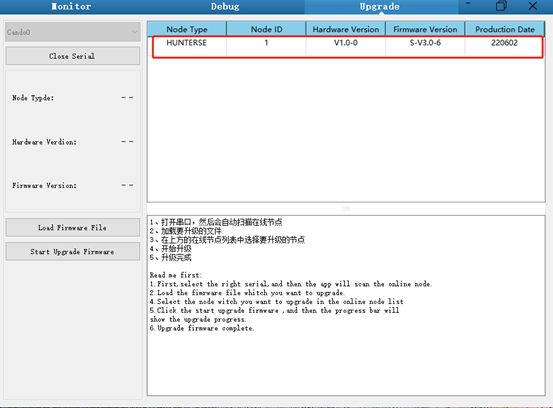

- Click the Open Serial button, and then press the power button on the car body. If the connection is successful, the version information of the main control will be recognized, as shown in the figure.

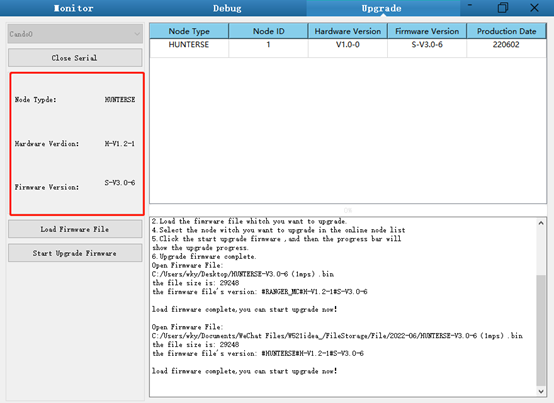

- Click the Load Firmware File button to load the firmware to be upgraded. If the loading is successful, the firmware information will be obtained, as shown in the figure

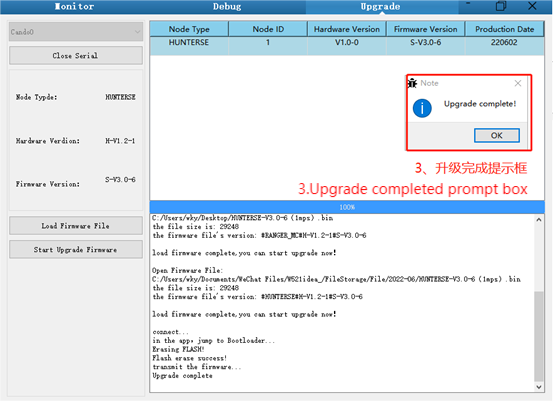

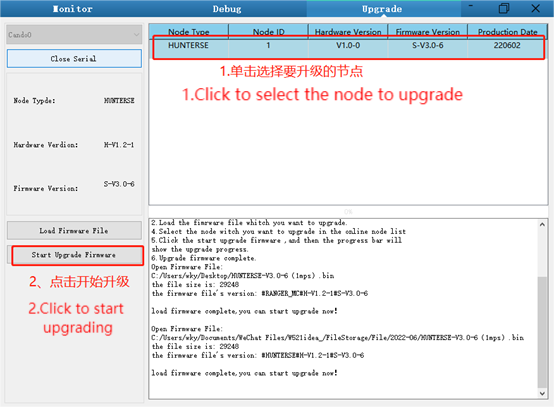

- Click the node to be upgraded in the node list box, and then click Start Upgrade Firmware to start upgrading the firmware. After the upgrade is successful, a pop-up box will prompt.
